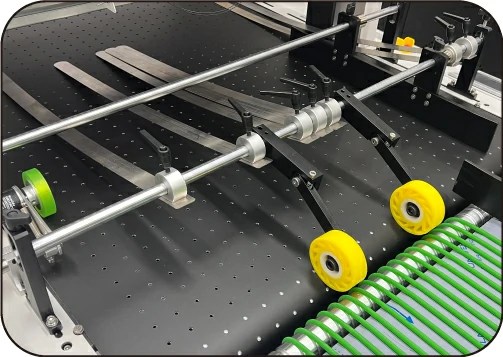

Giftec Leopard-S630 is the idealest option for fast speed, and high-volume packaging printing solution, the automatic integrated friction feeder allows less labour intervene, time-saving and cost-saving.
Optimal for printing Corrugated boxes, pouch, paper cup, catons, napkin, kraft paper bag, gift bag, tissue, carton, handbags, packaging boxes, brochures, booklet, egg box, labels, cards, pizza box, shopping bags etc…
One Pass Printer | Redefine profit · Empower the small.
Brand New HP A3 Print Bar industrial Thermal Inkjet Printing Technology.
1 person to operate, image import software, direct printing.
No minimum order quantity, you decide how much to print.
Print speed: 10-30m/min；Adjustable speed, one print per second.
Printing of different product sizes can be satisfied.
Environmentally friendly ink, ink dry immediately after printed, no need to wait.

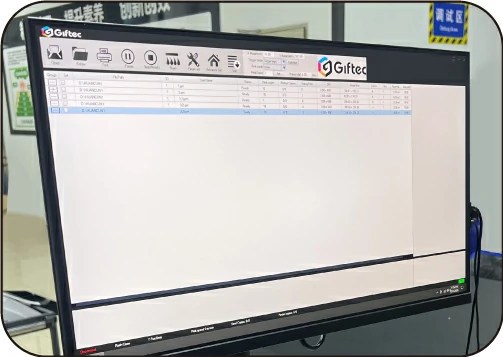

Giftec upgraded Control software & RIP color management all in one output software, intelligent color management, accurate control, good color reduction, simlpe and clear interface, easy human-machine interaction and simple operation.
Design Pattern
Proper placement position
Finshed products
Click on the picture to see the printing effect
| Picture size | 255 x 102 | 75 x 54 | 69 x 48 | 181 x 153 |
| Unit | mm | mm | mm | mm |
| Ink consumption | 0.37 | 0.012 | 0.01 | 0.16 |
| Unit | ml | ml | ml | ml |
| Ink used | dye ink | dye ink | dye ink | dye ink |
| Printing cost | 0.007215 USD | 0.000234 USD | 0.000195 USD | 0.00312 USD |
Giftec Inc. has signed an agreement with HP for the authorized brand-new A3 Print Bar for using in the latest single pass printing system.
Safeguard the quality, stability of your digital one pass printing system, and empower your brand reputation. This strategic choice is designed to give your business an unparalleled competitive advantage.
Leveraging HP proven thermal inkjet technology, the HP A3 Print Bar can eject extremely small ink droplets, achieving an optical resolution of over 1200 dpi. This means that whether it’s fine text, complex lines, or smooth gradients, you can get clear, sharp, and unparalleled printing results.
We combine the powerful performance of the HP A3 print bar with our single-pass printers. We have extensive application experience in your packaging printing industry, kraft paper packaging industry, logistics packaging industry, catering industry, label industry, advertising industry, disposable packaging industry, stationery industry, takeaway packaging and other fields, and will provide you with a complete printing solution that is stable, efficient, high-quality and low-cost.
This single-pass printer not only supports direct CMYK printing but also allows you to print large quantities of packaging at a fraction of the cost!
Print 3,000 paper bags for just $6.435!
| Advantages | 1. Printing cost as low as $0.02/㎡ 2. HP pagewide industrial printheads, support different printing width. 3. Save labour cost, automatic belt convayor with vaccume table, continous high-speed printing 4. Light-weight smaller industrial design, easy to move and operate, save space. 5. More flexible, size customization available, to meet the demands of your small or large batch production, without complicated platemarking process. 6. Fast drying water-bsaed environmentally friendly ink, ink dries immediately after printing, pattern is waterproof and anti-fouling after printing. | ||||||||||
| Application | Corrugated boxes, cartons, handbags, packaging boxes, paper bags, brochures, booklet, labels, cards, pizza box, shopping bags etc... Water based ink-absorbing material | ||||||||||
| Basic information | Printer color | Black / White | |||||||||
| Printer name | Giftec Leopard Series Single Pass Printer | ||||||||||
| Maximum printing thickness | 5.9 in. (150mm) Support customization | ||||||||||
| Flatbed Type | Vacuum adsorption, auto continual conveyor | ||||||||||

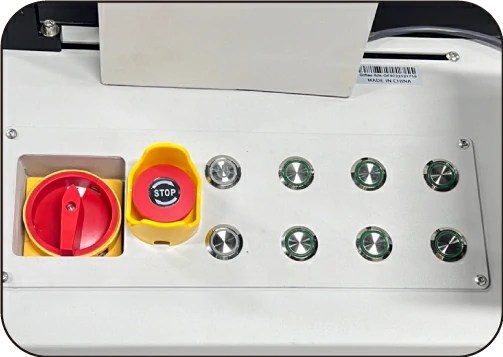

| Control syetem | Touch screen control panel | ||||||||||
| Media Release device | Integrated friction feeder *Optional | ||||||||||
| Media Take up device | Adjustable take up tray *Optional | ||||||||||
| X axis adjustment | Dual leadscrews, automatic & manual adjustment | ||||||||||
| Printhead quantity | 1~3pcs * HP pagewide industrial printheads (bigger size customization support) | ||||||||||
| Model name | Leopard-S630 | ||||||||||
| Model Name | Leopard-S215 | Leopard-S430 | Leopard-S645 | Leopard-S300 | Leopard-S600 | Leopard-S900 | |||||
| Print head | A4 Print head * 1pcs | A4 Print head * 2pcs | A4 Print head * 3pcs | A3 Print head * 1pcs | A3 Print head * 2pcs | A3 Print head * 3pcs | |||||
| Printing width(mm) | 210mm (8.46'') | 300mm (11.81'') | 430mm (16.93'') | 297mm (23.62'') | 594mm (25.39'') | 891mm (35.43'') | |||||
| Machine for Material width(mm) | 600mm (23.62'') | 600mm (23.62'') | 800mm (31.5'') | 800mm (31.5'') | 800/1200 | 1200mm (47.24'') | |||||
| Printhead | Technology | Advanced thermal foaming bubble-inkjet technology | |||||||||
| Ink drop Volume | 6PL | ||||||||||
| Print head | 1~3pcs * HP pagewide industrial printheads | ||||||||||
| Resolution | 1200*300dpi, 1200*600dpi,1200*1200dpi | ||||||||||
| Print Speed | 10-30m/min | ||||||||||
| Printhead Protection Technology | Auto carriage anti-scratch kit | ||||||||||
| Ink system | Ink type | Aqueous/ dye/ pigment water-based ink | |||||||||
| Color Configuration of printing | Cyan(C), Magenta(M), Yellow(Y), Black(K) | ||||||||||
| Ink tank | 1500ML/color | ||||||||||
| Ink supply | Continual ink supply system (CISS); Intelligent constant sub-ink tank pressure | ||||||||||
| Working condition | Temperature | 15℃~ 30℃ (59ºF～86ºF), Humidity 30%-70% | |||||||||
| Voltage | 220V/AC(±10%), 50Hz, 1KW(Max.) | ||||||||||
| Acoustic noise level | 70db(A) or less | ||||||||||
| Size & weight | Printer size(L*W*H) | 1510*840*1280mm (Main printer) | |||||||||
| Package size(L*W*H) | 1700*1000*1400mm (Main printer) | ||||||||||
| Net Weight of printer | 200KG | ||||||||||
| Gross weight | 265KG | ||||||||||
| Package type | Inside foam protection, outside Ply-wood steel frame package | ||||||||||
| Software system recommen-ded | Operating system | Windows® 7/10 (64 bit) Recommend | |||||||||
| CPU | Intel® Core™ i5, 2.5 GHz or more | ||||||||||
| HDD | Install space 1 GB or more; Working space 100 GB | ||||||||||
| Processor prefered | INTEL AMD | ||||||||||
| Storage | RAM>8G | ||||||||||
| Data Interface | Gigabit Ethernet port | ||||||||||
We have a highly skilled team with professional knowledge and experience in digital printing, providing first-class solutions according to customer needs.
